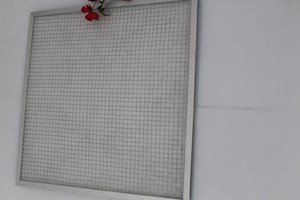

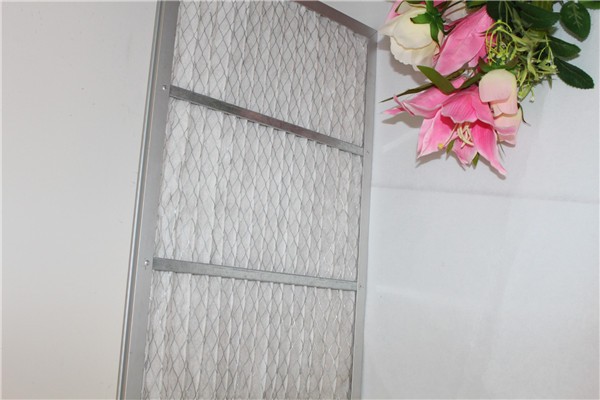

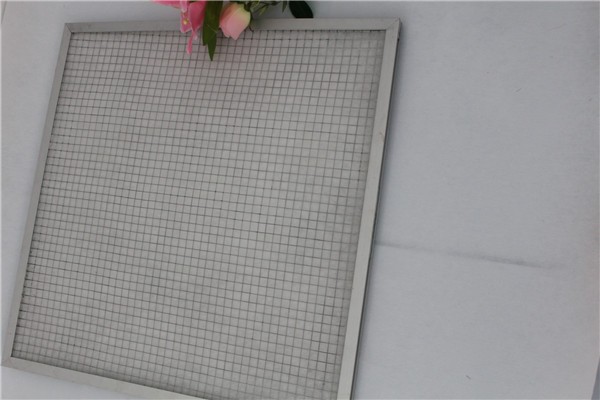

panel filter--air filter,hepa filter,pre filter, carbon filter,panel filter,synthetic filter,pleated filter

Applications:coarse particle filtration
Type:flat panel filter
Frame:galvanized steel, aluminium and stainless steel
Filter media:synthetic fiber
Grids:aluminium mesh, galvanized steel mesh
EN 779 Class:G2－G4
Average arrestance:74%－94%（ASHRAE 52.1-1992）
MERV:MERV 3－8（ASHRAE 52.2-1999）
DIN 53438 Flammability:F1
UL 900 Standard:CLASS 2
Final pressure drop:(recommender) 200Pa -（maximum）250Pa
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:100℃
Max. relative humidity:100%

Specs as below:

MOQ: 1pc

Warranty: 3 months

Delivery time: 7 to 30 working days

Port: Shanghai

Payment terms: T/T, Paypal, Western Union, L/C, D/P,D/A

Samples: available.

factory tour: welcome

This item is also named as: Air filter, hepa filter, pre filter, carbon filter, panel filter, cabin air filter,synthetic fiber filter

glass fiber, synthetic fiber and nonwoven fabric can be the material of air filter,hepa filter,pre filter, carbon filter,panel filter,synthetic filter,pleated filter
