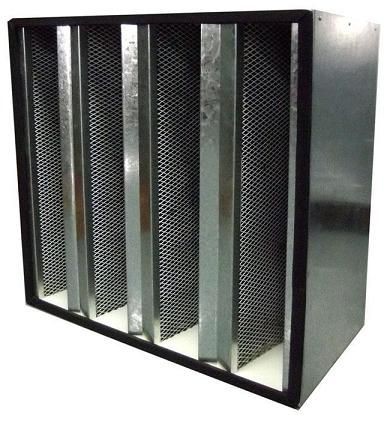

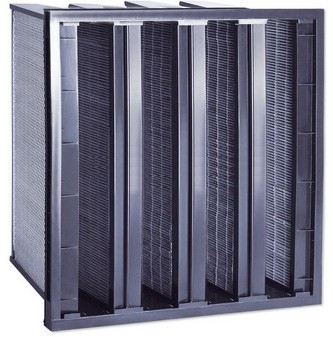

Activated carbon v-bank filter with high air flow
Features
1. Using carbon particles and ultrafine synthetic fibres composite material, effectively removing harmful substances in the air
2. Larger filter area, reliable performance with high adsorption capacity and removal efficiency
3. Light weight, easy installation and maintenance
4. Frame is made of ABS, easy to dispose in accordance with environmental protection requirements
Application
central air conditioning and ventilation systems, to eliminate light concentrations of organic pollutants, sulfur dioxide, nitrogen dioxide, with the function of removing of dust and gas contamination at the same time.
| Dimensions | Structural Style | Frame | Media Area (m2) | Rated Air Flow (m3/h) | Initial Pressure Drop (Pa) |
| W×H×D (mm) | |||||
| 287×287×292 | 287 Header | 2V ABS | 2.1 | 800 | 80 |
| 287×490×292 | 3.8 | 1200 | |||
| 287×592×292 | 4.7 | 1600 | |||
| 490×287×292 | 490 Header | 3V ABS | 3.2 | 1100 | |
| 490×490×292 | 5.8 | 1900 | |||
| 490×592×292 | 7.2 | 2400 | |||
| 592×287×292 | 592 Header | 3V ABS | 3.2 | 1100 | |
| 592×490×292 | 5.8 | 1900 | |||
| 592×592×292 | 7.2 | 2400 | |||
| 592×287×292 | 4V ABS | 3.2 | 1600 | ||
| 592×490×292 | 7.7 | 2500 | |||
| 592×592×292 | 9.4 | 3200 | |||
| 592×287×292 | 592 Header | 5V ABS | 5.2 | 1800 | |
| 592×490×292 | 9.5 | 3200 | |||
| 592×592×292 | 11.7 | 3900 | |||
| 305×305×292 | 610 Box | 2V ABS | 2.7 | 850 | |
| 305×610×292 | 5.4 | 1700 | |||
| 610×305×292 | 5V ABS | 6.7 | 2100 | ||
| 610×610×292 | 13.5 | 4200 | |||
