Applications:coarse particle filtration
Type:flat mesh panel
Frame:galvanized steel, aluminium and stainless steel
Filter media:nylon mesh, aluminium mesh and stainless steel mesh
Grids:aluminium mesh and stainless steel mesh
EN 779 Class:G2－G3
Average arrestance:65%－80%（ASHRAE 52.1-1992）
MERV:MERV 2-4（ASHRAE 52.2-1999）
Final pressure drop:(recommender) 150Pa -（maximum）250Pa
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:250℃

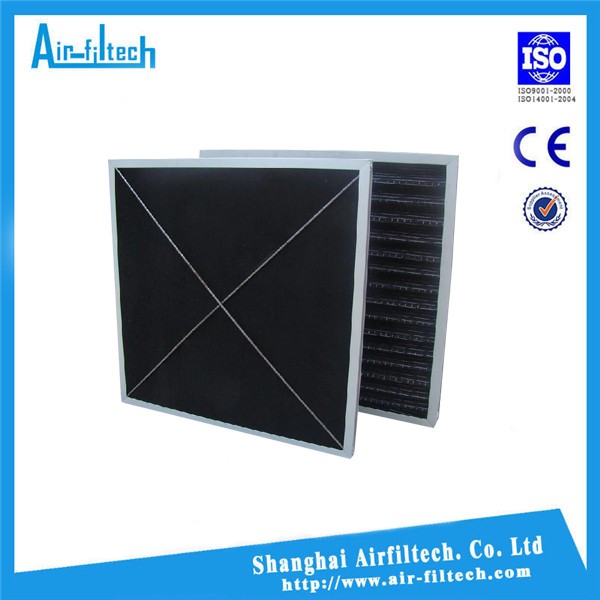

Panel filter is the pre filter of hepa filter and air filter.

MOQ: 1pc

Delivery time: 7 to 30 working days

Port: Shanghai

Payment terms: T/T, Paypal, Western Union, L/C, D/P,D/A

Samples: available.

factory tour: welcome

glass fiber, synthetic fiber and nonwoven fabric can be the material of air filter,hepa filter,pre filter, carbon filter,synthetic filter,pleated filter,activated carbon flat panel filter.
