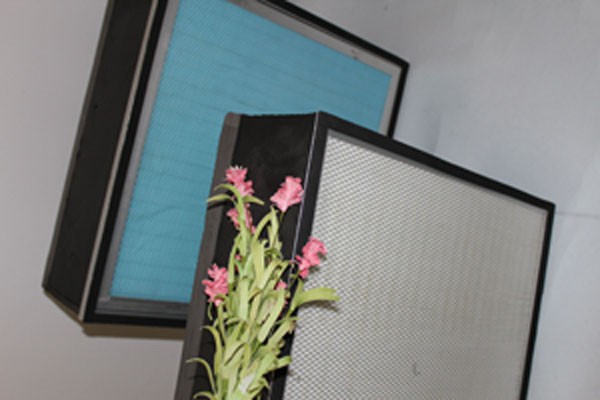

High temperature resistance with wedge senior filter

appliacation: Hot air filter in a high temperature environment

Type:olding panel filter

Frame: galvanized steel and stainless steel

Filter material: white glass fiber mat

Protection Network: aluminum mesh and stainless steel wire mesh

EN 779 Level: F5

The average weight efficiency: 94 percent (ASHRAE 52.1 to 1992)

Average efficiency: 45 percent to 55 percent (ASHRAE 52.1,1992)

The minimum efficiency reporting value: MERV 9 (ASHRAE 52.2,1999)

EUROVENT 4 or 5 level: EU5

Final resistance:(recommendation) 250Pa,(maximum) 300Pa

Dust holding capacity: 250g per m2

Maximum air flow: 125 percent of rated air flow

Temperature resistance: 300 deg c, (continuous temperature)

Humidity: 80 percent
