·Large dust holding capacity
·High efficiency
·Good air permeability
·Long working life

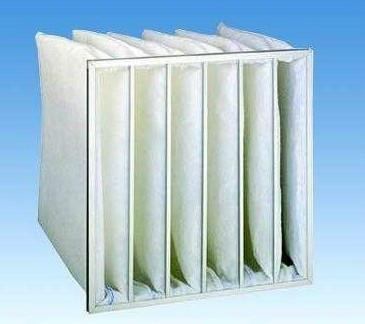

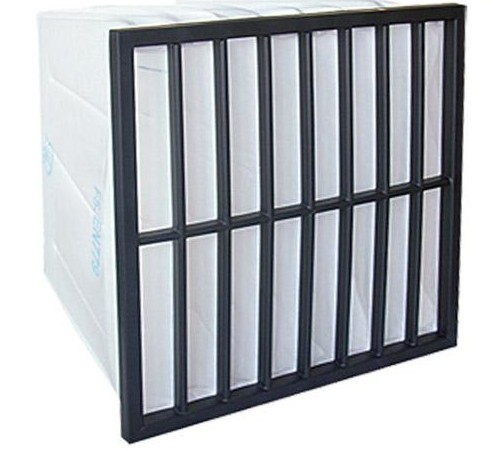

Type: pocket filter
Frame: aluminum alloy or stainless steel
Media: Non-woven filter media,synthetic fiber
EN779 class: F5,
Temp. Resistance:100 degree Celsius
Humidity: 100%
Specialty: Galvanized iron or aluminum alloy frame
Between each pocket there is a metal stick to make frame firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.
Ultrasonic sealing make the filter more strong and not easy to break.
Adopted fine synthetic fiber instead of some fiberglass material.
Material is made of antistatic fiber, large dust holding capacity and long working life.
Pocket mesh efficiency has five different types for choice: 35%,45%,65%,85%and 95%
Application: The air pre-filtration system for non-dust room, hospital, pharmaceutical factory, electronics factory, spray booth and other filtration systems which are in high need of clean air.
Size(mm) |
Rated Air Flow(m³/h)
|
Initial Resistance(Pa) |
Class |
Color |
Material |
|
Frame |
Media |
|||||
595*595*600*6P |
3200 |
40-50 |
50% |
white |
Aluminum alloy, Galvanized sheet |
Non-woven filter media, synthetic fiber |
595*595*600*5P |
2700 |
40-50 |
50% |
white |
||
595*495*600*6P |
1600 |
40-50 |
50% |
white |
||
595*295*600*6P |
2200 |
40-50 |
50% |
white |
||
495*295*600*4P |
800 |
40-50 |
50% |
white |
F5 air filter, pocket filter, air filter, air filter hepa
