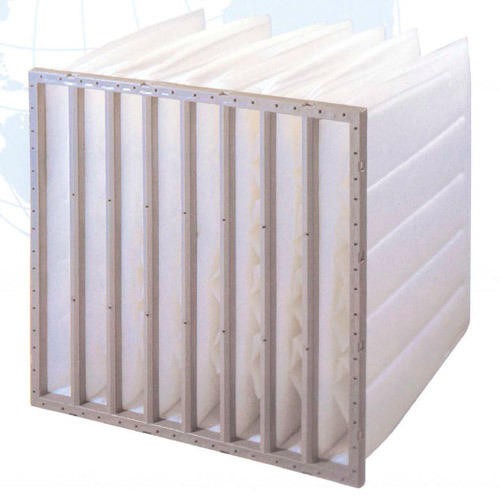

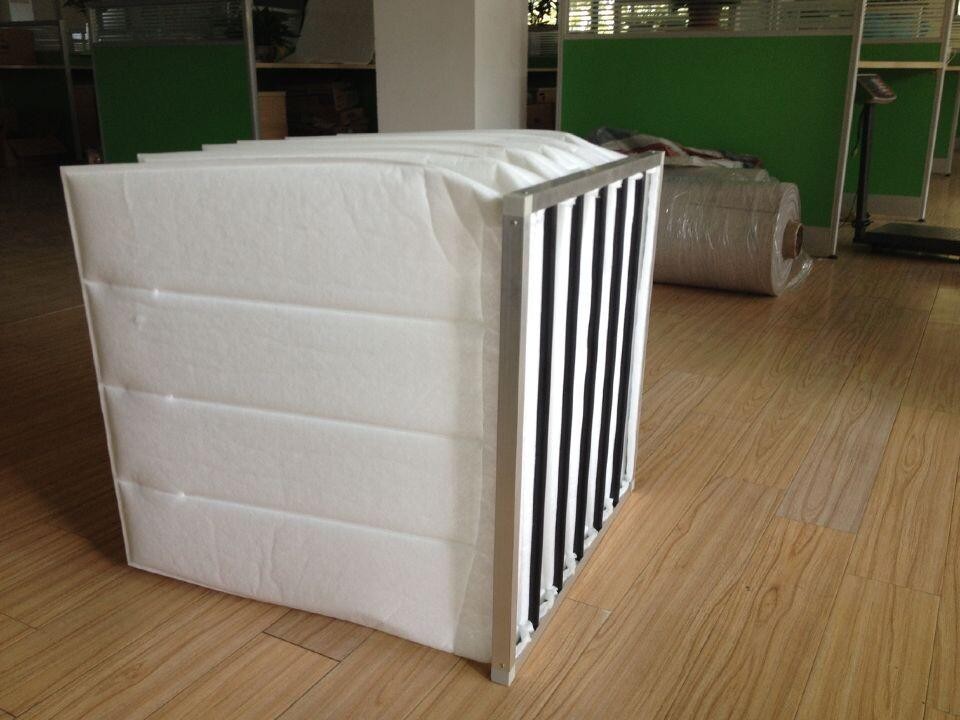

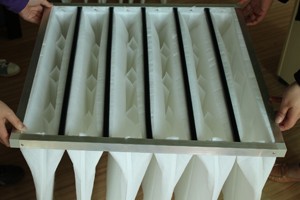

Aerodynamic Self-supported Filter for air filter-----Air filter,hepa filter,pre filter,carbon filter,pocket filter

Aerodynamic, Tubular Pocket Spacers and Wedge-Shaped Filter Design channel the air for particulate loading throughout the depth of the pocket and minimum air flow resistance.
Self-Supporting Pockets stay rigid in turbulent airstreams and during turbine shutdown.
Applications:coarse and fine particle filtration; gas turbine system filtration
Type:multi-pocket filter
Frame:galvanized steel, aluminium or plastic
Filter media:progressively structured synthetic fiber
Gasket:EVA or none for plastic frame
EN 779 Class:G3－F7
Average arrestance:80%－99%（ASHRAE 52.1-1992）
MERV:MERV 5－13（ASHRAE 52.2-1999）
DIN 53438 Flammability:F1
UL 900 Standard:CLASS 2
Final pressure drop:(recommender) 350Pa(G3-F5)－500Pa(F6-F7)
Max. air flow rate:125% of nominal air flow rate
Max. operating temperature:100℃
Max. relative humidity:100%

Specs as below:

MOQ: 1pc

Warranty: 3 months

Delivery time: 7 to 30 working days

Port: Shanghai

Payment terms: T/T, Paypal, Western Union, L/C, D/P,D/A

Samples: available.

factory tour: welcome

Aerodynamic Self-supported Filter for air filter is also named as: Air filter, hepa filter, pre

filter,pocket filter.
